Gauge Steel Assembly: Light gauge steel (LGS) structures have gained immense popularity in modern construction due to their durability, flexibility, and cost-effectiveness. One of the key advantages of using light steel is the relatively fast and easy assembly process compared to traditional construction methods. In this blog post, we will explore the essential assembly details of light steel structures and discover how these structures make projects more efficient while delivering high-quality results.
Prefabrication Advantage in Steel Structure Assembly
One of the most important features of light steel structures is the prefabrication process. Components like the steel frames, wall panels, and roof trusses are manufactured in a controlled environment. This ensures that each part is produced with precision, minimizing errors and material waste on site. These prefabricated components are then shipped directly to the construction site, where they are assembled quickly and efficiently. The precision in manufacturing reduces on-site work time and allows construction teams to complete projects quickly without compromising on quality.

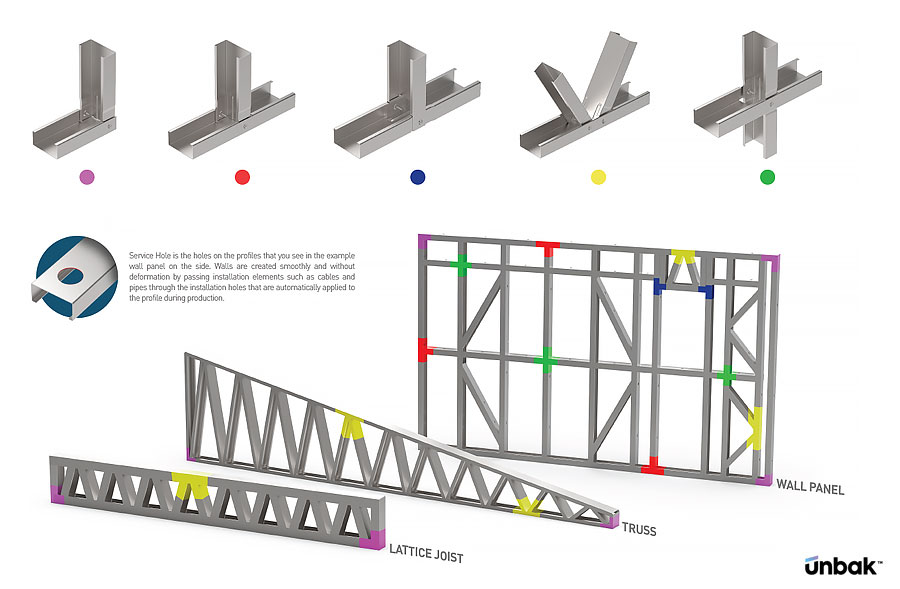

Most Common Assembly Details for Gauge Steel Assembly Metal Panels
There are standard assembly types used worldwide in the installation of panels in light steel structures. These steel structure assembly panels are designed to allow for fast and robust construction. The molds in your machine automatically operate based on design data from the design software. The main assembly types, usage areas, and the molds used are as follows:
Standard Gauge Steel Assembly 1: This type of assembly is used for Wall Panels, Roof Truss, and Lattice Joist.
Molds Used: Swage, Dimple, Lip Notch
Standard Gauge Steel Assembly 2: This type of assembly is used for Wall Panels and Roof Truss installations.
Molds Used: Swage, Dimple, Lip Notch, Web Notch
Standard Gauge Steel Assembly 3: This type of assembly is used for Wall Panel installation.
Molds Used: Swage, Dimple, Lip Notch, Web Notch
Standard Gauge Steel Assembly 4: This type of assembly is used for Wall Panels, Roof Truss, and Lattice joist installations.
Molds Used: Swage, Dimple, Lip Notch, Truss End (Chanfer Cut)
Efficient and Precise Assembly – Construction Steps
The assembly of light Gauge Steel Assembly typically begins with the installation of the foundation, followed by the placement of steel frames. Here’s an overview of the general assembly process, step by step:
- Foundation Preparation: As with other structures, the foundation is critical for light steel buildings. Depending on the size and location of the structure, concrete or steel piles may be used. It is important for the foundation to be level and strong enough to support the structure.
- Panel Installation: Once the foundation is complete, steel frames are raised and placed according to the design. These frames are fastened with bolts, screws, or welds depending on the project’s requirements. Cold-formed steel, which is lighter than traditional hot-rolled steel, makes transportation and assembly easier.
- Wall Panel Installation: Prefabricated wall panels, often produced with door and window openings, are quickly placed and secured. These panels feature horizontal and vertical profiles that allow for the easy addition of insulation and other interior elements.
- Roof Truss Installation: After the walls are completed, the roof trusses are installed. These steel trusses are designed to be lightweight yet provide maximum durability. The roof can also be pre-assembled and lifted into place, further speeding up the construction process.
- Cladding and Exterior Finish: The next step involves adding exterior cladding to provide extra stability and weather protection. This stage is followed by the installation of fiber cement boards, metal panels, or other exterior cladding materials.
- Interior Work and Utilities: Once the exterior of the building is complete, interior work such as electrical wiring, plumbing, and insulation begins. Pre-drilled holes in the steel frames allow for easy installation of utilities, significantly reducing labor time and costs.
- Final Touches: After the installation of utilities and insulation, drywall or other interior surface coverings are added. At this stage, the building is nearly complete, with final touches such as painting, flooring, and trim added to finish the project.
